| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 48V 1.3A |
| Consumption | ≤3.5W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 220mm(W)X200mm(D)X43.6mm(H) |
| Weight | 0.2Kg |
| Warranty | 3/5 Years |

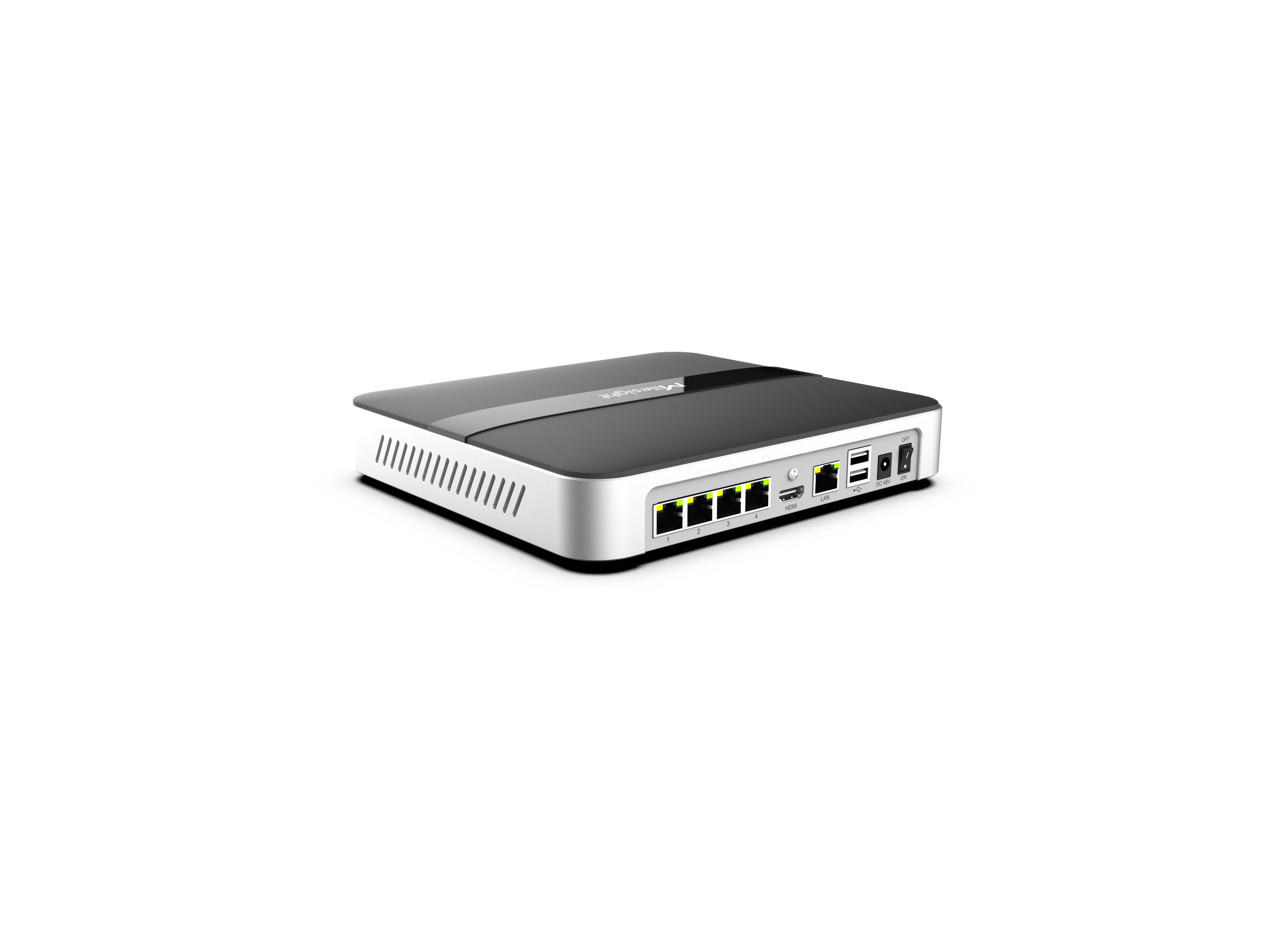

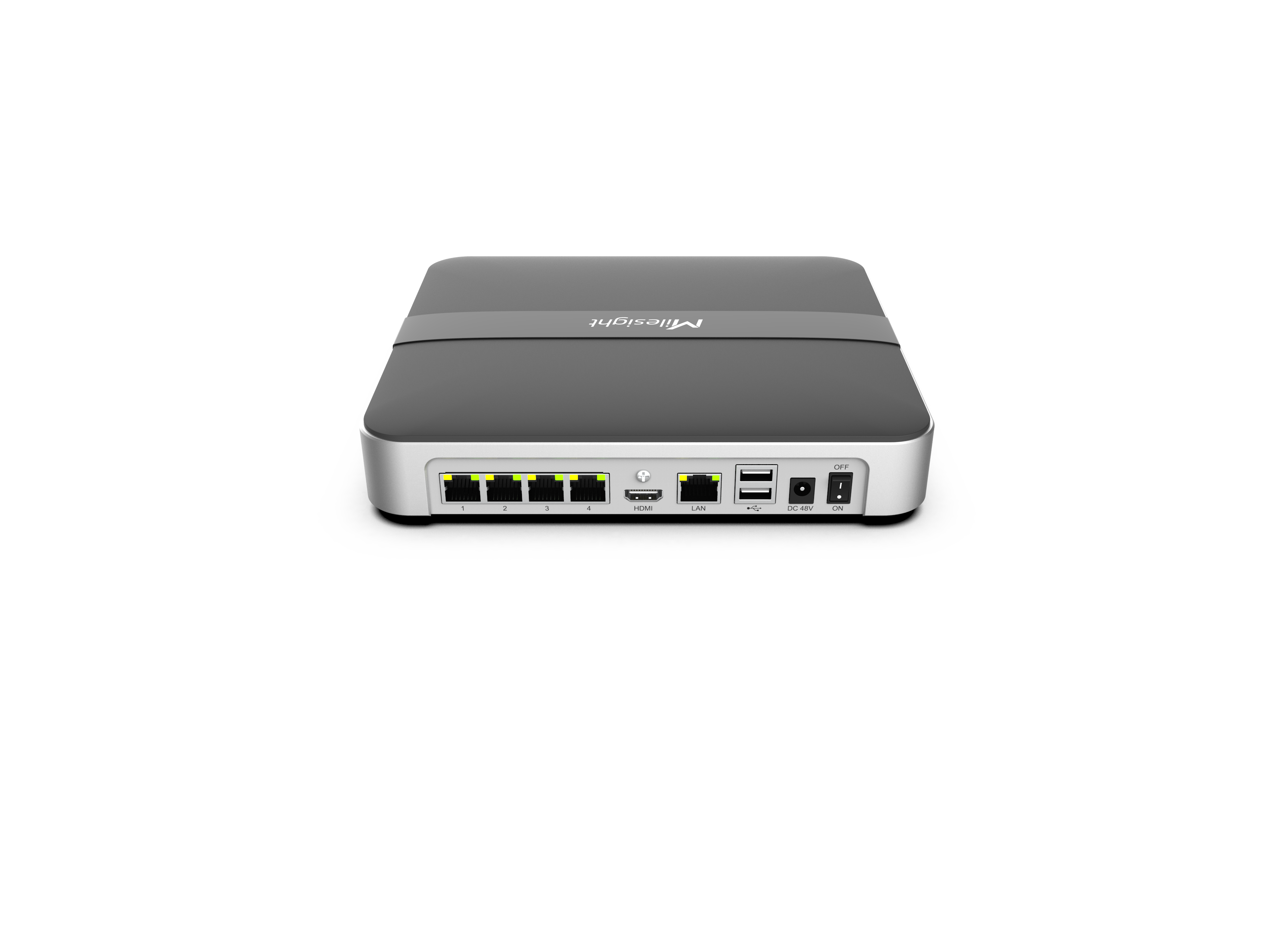

| Interface | 4*RJ45 10/100Mbps |
| Power Output | ≤40W |
| Supported Standard | IEEE 802.3af/at |
| Network Interface | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 |
| Interface | |
|---|---|
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type |
| Backup |
| Record | |
|---|---|
| 1*SATA HDD (3.5”) | |
| Capacity | Up to 10TB capacity for each HDD |
| H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format |
| 1-CH, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. (HDMI supports Audio Output) |
| Dual Stream |
| Recording Resolution |
| Synchronous Playback |
| Network Video Input | 4-CH |
| Bandwidth Requirement | 40Mbps (Incoming)40Mbps (Outgoing) |
